LIGHTWEIGHT ELECTRONICS UNIT
Dimensions / Weight:
185 x 80 x 150 mm (7.3″ x 3.2″ x 5.8″) / 1,08 kg (2.38 lbs)
LIGHTWEIGHT ELECTRONICS UNIT
Dimensions / Weight:
185 x 80 x 150 mm (7.3″ x 3.2″ x 5.8″) / 1,08 kg (2.38 lbs)
TELESCOPIC POLE
Expandable telescopic pole with three fixed positions at (from armrest to search head heel): 1200 mm (47.2”), 1300 mm (51.2”), 1400 mm (55.1”) (fully extended)
TELESCOPIC POLE
Expandable telescopic pole with three fixed positions at (from armrest to search head heel): 1200 mm (47.2”), 1300 mm (51.2”), 1400 mm (55.1”) (fully extended)
ULTRA-SENSITIVE HEADPHONES
Lightweight: 170 g (0.38 lbs)
ULTRA-SENSITIVE HEADPHONES
Lightweight: 170 g (0.38 lbs)

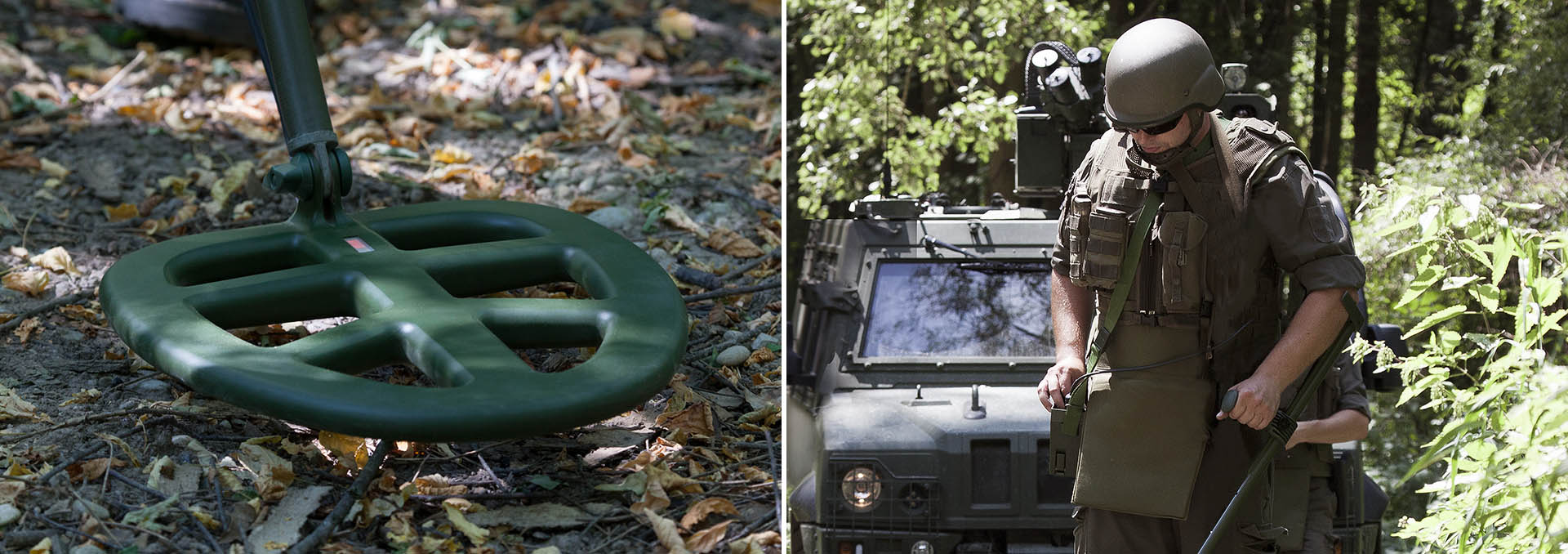

ULTRA-SENSITIVE HEAD
Dimensions / Weight:
305 x 255 mm (12 x 10″) / 1,30 kg (2.87 lbs) (with telescopic pole)
ULTRA-SENSITIVE HEAD
Dimensions / Weight:
305 x 255 mm (12 x 10″) / 1,30 kg (2.87 lbs) (with telescopic pole)
LED INDICATOR
Different LED colors to show detection in either half of the search head
LED INDICATOR
Different LED colors to show detection in either half of the search head

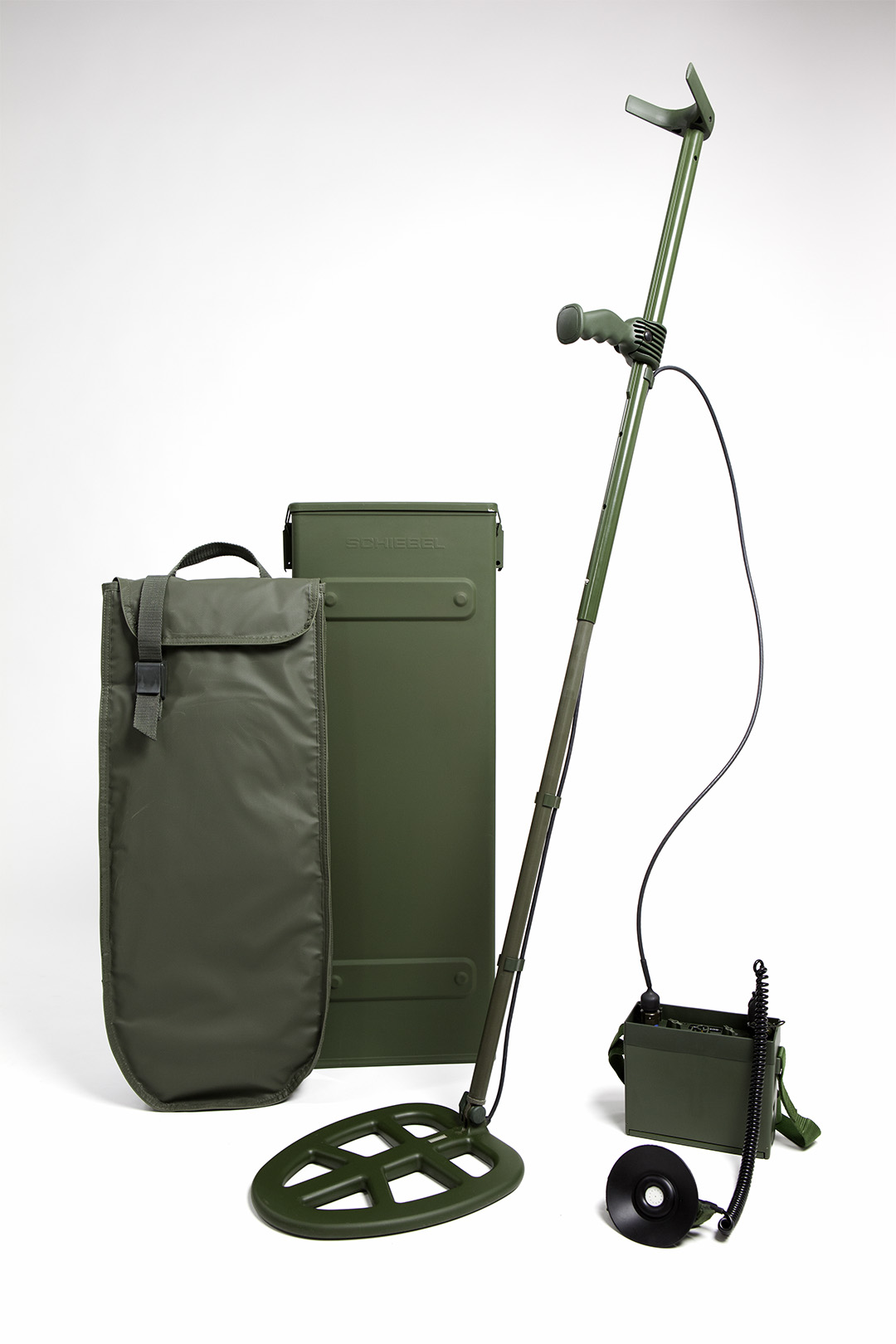

Components
A backpack-style carry bag with individual accessory pockets contains all parts and accessories for the operation of the COMID™.
The carry bag fits in a watertight aluminum transport and storage case. The case features a vent valve, making it suitable for air cargo.
The main components are:
- Search head
- Telescopic pole
- Electronics unit
- Headphone
- Accessories
Features
- Continuous-wave operation
- Enhanced ground compensation
- Static search
- Very quick calibration, independent of ground intensity or soil
- During calibration directly above a low-metal reference test piece (PMA3), ground compensation is not negatively affected
- Clear differentiation between the two pinpointing tones
- Tone modulation as indication for the size and/or metal content of the detected item
- LED display with different colors integrated directly into the search head allows the deminer to keep focused on the ground
- Different LED colors to show detection in either half of the search head
- The most recent ground calibration is retained
- Multi-channel operation allows the simultaneous deployment of a number of COMID™ close to each other
- Infrared data port for software updates
Technical
| COMID™ total weight | 6.16 kg (13.58 lbs) |
| Search head with telescopic pole | 267 mm (10.5”) / 1.30 kg (2.87 lbs) |
The search head contains an antenna with integrated noise-reduction circuitry.
| Telescopic pole with search head when collapsed | 770 mm (30.3”) / 1,30 kg (2.87 lbs) |
| Telescopic pole (three fixed positions) | 1200 mm (47.2”) / 1300 mm (51.2”) / 1400 mm (55.1” fully extended) |

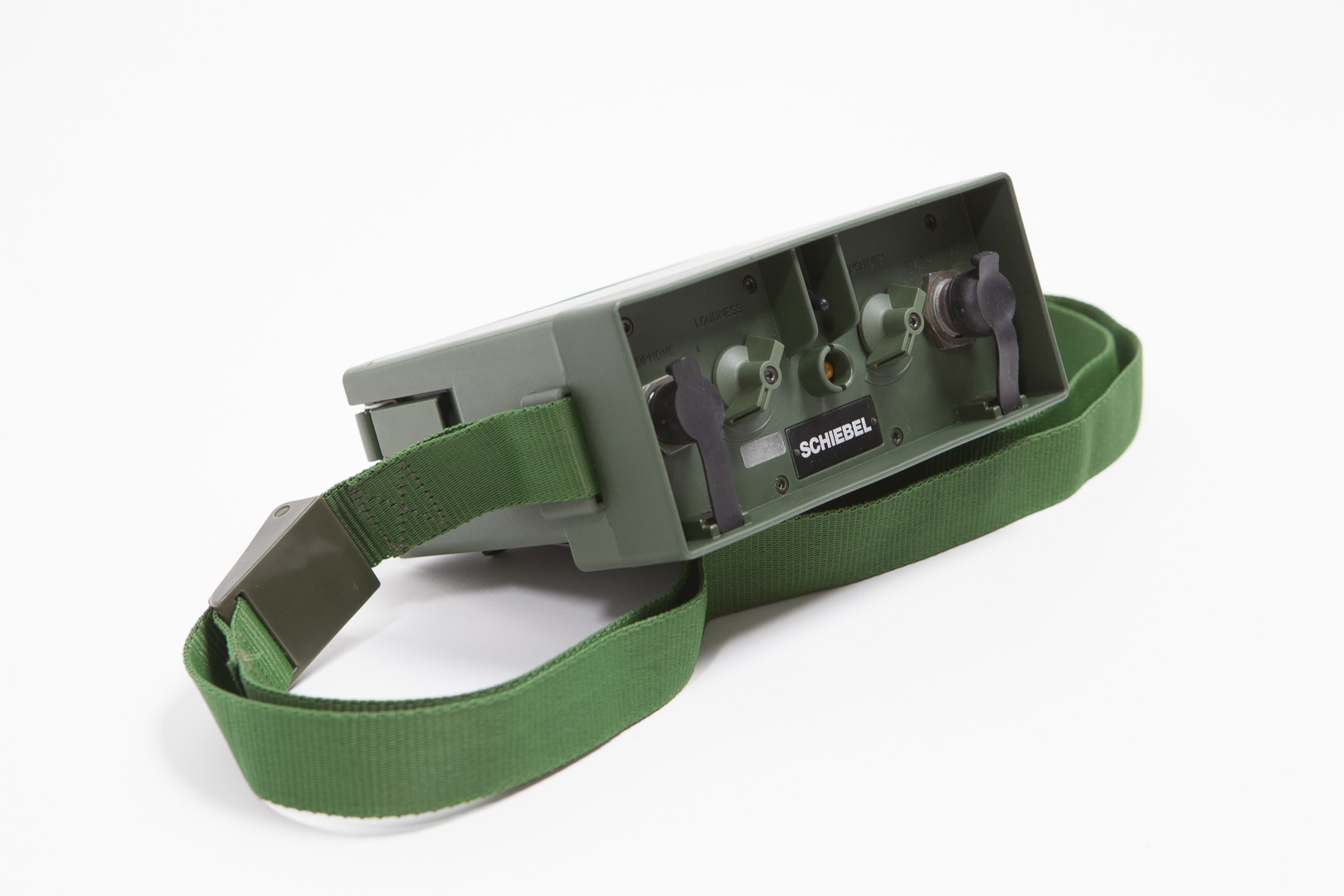

| Electronics unit | 185 x 80 x 150 mm ( 7.3” x 3.1” x 5.9”) / 1,08 kg (2.38 lbs) |
The watertight electronics unit contains the control panel, a printed circuit board and the battery compartment. The control panel includes sockets for the search head and headphone and the following features: Master switch, volume control, sensitivity control and failure-warning LED.
| Headphone | 0,17 kg / 0.37 lbs |
The single speaker headphone is designed for wear under a ballistic helmet.
| Diving depth | Down to 2 m (6,6') |
