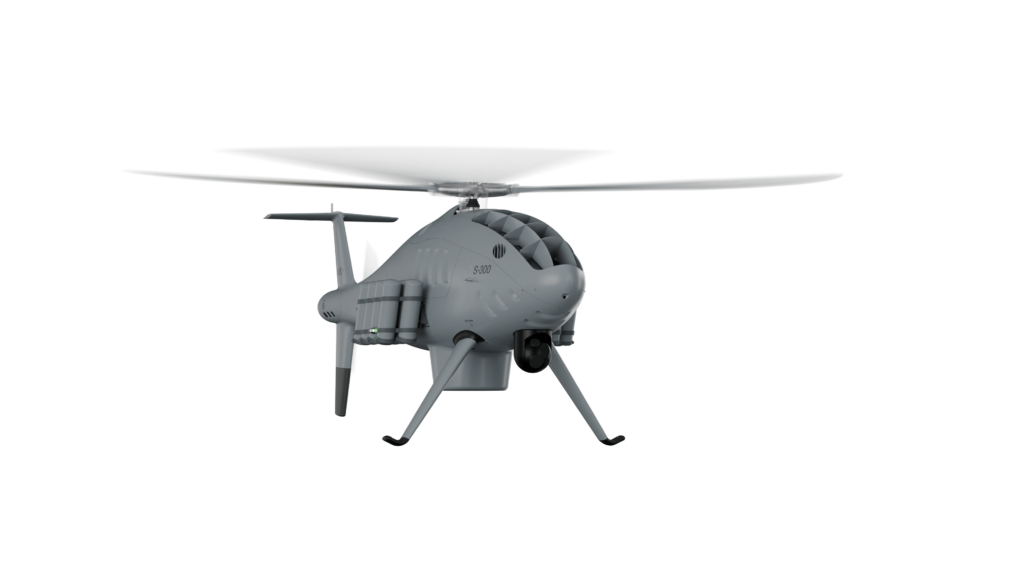

Schiebel’s CAMCOPTER® S-300 Unmanned Air System (UAS) is a next-generation heavy-lift-platform designed for full integration into advanced naval combat systems. It delivers a powerful combination of mission-ready versatility, high-endurance performance, and robust operation in contested and electromagnetically challenging environments.

Performance Proven in Flight

The CAMCOPTER® S-300 is undergoing an extensive flight test campaign. Initial results confirm the platform’s performance, stability, and mission versatility – marking key milestones on the path to operational readiness.

Redefining Heavy-Lift Aerial Capability.

Built on More Than 30 Years of UAS Experience.

Schiebel’s CAMCOPTER® S-300 is engineered to deliver real-time intelligence and operational awareness in complex operational environments. Combining long endurance, high payload capacity and operational flexibility in a single VTOL UAS platform, it is optimised for shipborne and austere land-based operations. The S-300 features multiple hardpoints enabling flexible payload integration and cargo-carrying capability of up to 250 kg (551 lb), reflecting a platform evolution shaped by decades of operational experience.

Payload CapabilitiesTechnical DataPerformance
1
2
3
4
1

Nose payload bay

2

Side payload bay

3

Main payload bay

4

Auxiliary payload bay

50 kg

Nose Payload Bay

80 kg each

Side Payload Bay

250 kg

Main Payload Bay

50 kg

Auxiliary Payload Bay

Brochure
700 kg

MTOW

4850 mm

Length

1890 mm

Height

1720 mm

Width

5300 mm

Rotor Diameter

Brochure
120 kts

Dash Speed

55 kts

Cruise Speed

24 hours

Endurance

21.000 ft

Service Ceiling

200 km

Data Link Range

Brochure

OPERATIONAL SCENARIOS

  • Anti-Submarine Warfare

    The new S-300, with up to 350 kg payload capacity, is tailor-made for ASW missions – carrying advanced sonar systems and sensors with unmatched endurance. Long Range. Heavy Payload. Ready to Hunt.

  • Search and Rescue

    The CAMCOPTER® S-300 extends your reach in critical SAR missions – with long endurance, real-time imaging and the ability to carry rescue equipment onboard or underslung.

  • Cargo Delivery

    With up to 350 kg payload, the S-300 transports essential cargo where manned aircraft can’t – reliably, autonomously, and with mission flexibility built in.
